Plumbing - PEX Plumbing System

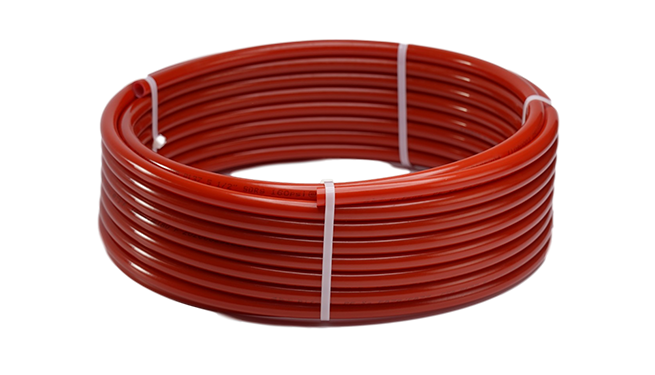

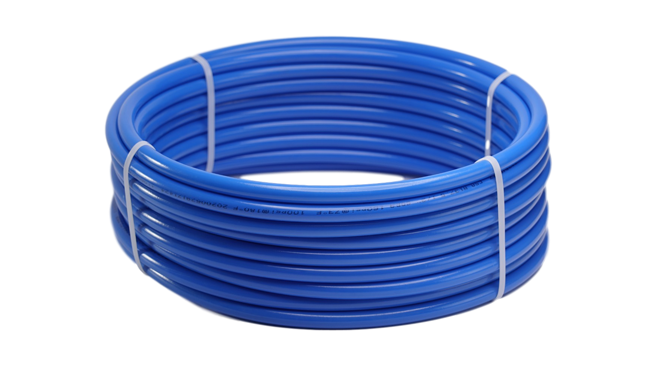

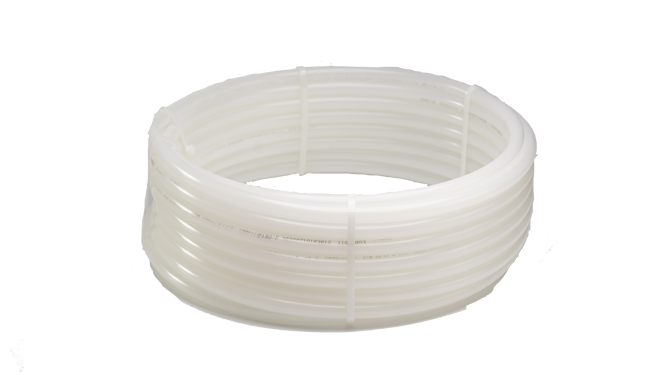

PEX-a Pipe
RIIFO offers a comprehensive range of PEX-a products, highly regarded by installers for their chlorine resistance, freeze resistance, flexibility, and ease of installation.
Certified to NSF 14 and 61 and achieve the highest level of chlorine-resistance
Flexible with fewer fittings, reducing installation time and risk of leaks
Full-flow design to minimize pressure loss
F1960 connection method, simple, quick and reliable
PPI-listed raw materials support a 50-year service life
PEX-a Pipe
Product Series
PEX-a (American Standard)
PEX-a (American Standard)
01

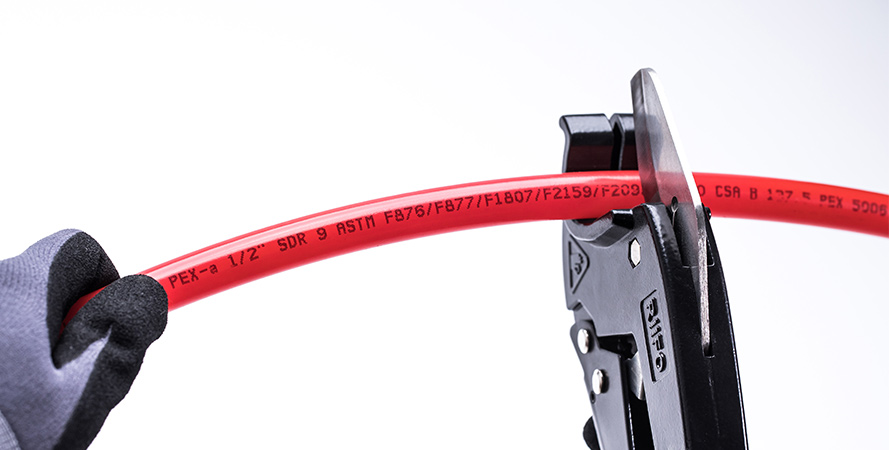

Cut
Cut the tubing vertically and precisely with a tubing cutter.
02

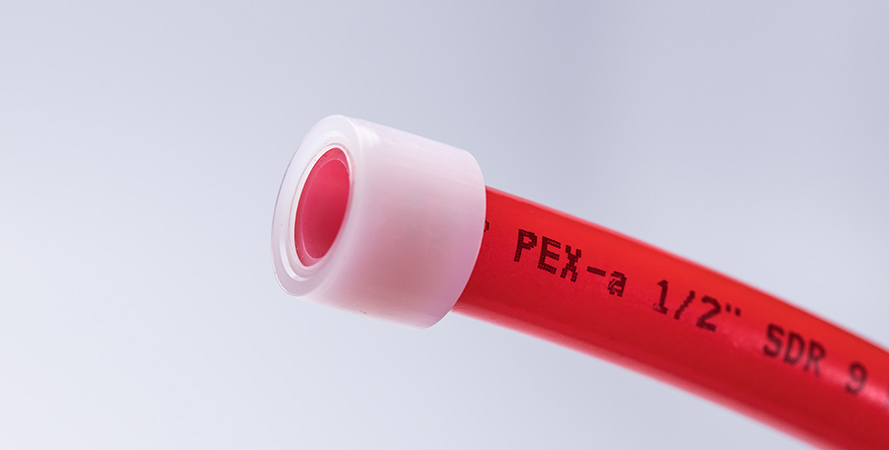

Place expansion ring
Choose the appropriate size expansion ring and place it onto the end of the tubing.
03

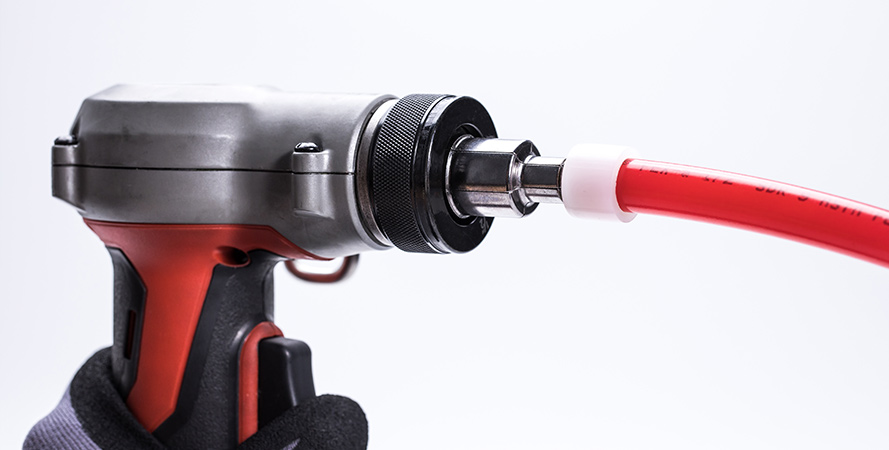

Expand
Using an approved manual or cordless expansion tool, slide the tubing onto the tool head until it stops. Expand until the tubing/sleeve are snug with the expander tool.
Note: Ensure to stop and rotate tubing 1/8 turn between expansions if using a manual tool or a battery tool without automatic rotation.
04

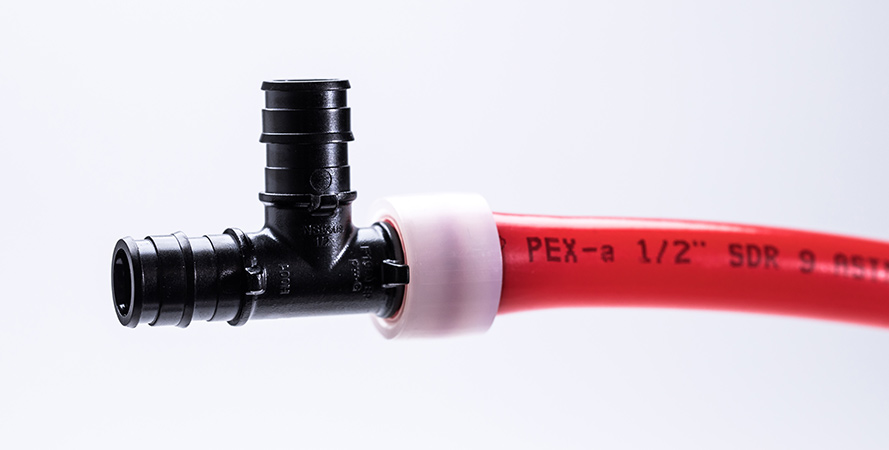

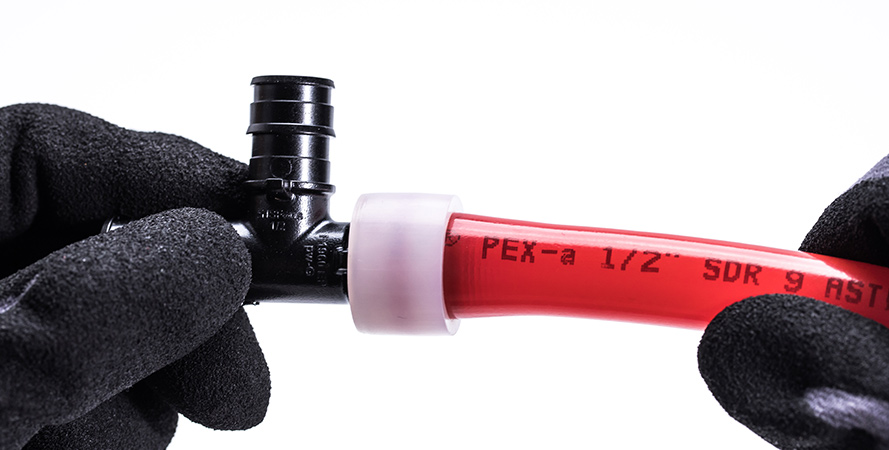

Insert the fitting
Remove the tool from the tubing and sleeve. Immediately insert the F1960 Cold Expansion Fitting into the expanded tubing until its shoulder touches the sleeve end.
05
Fully sealed
Tubing may take up to two minutes to fully seal around the fitting. Twist the fitting to ensure the ring is fully sealed.
