Plumbing - PP-R Plumbing System
PP-R Fitting
RIIFO PP-R fittings feature a unique swallow-tailed structure on the metal insert, eliminating the risk of leaks caused by the differing thermal conductivity of brass and plastic.
Unique swallow-tailed structure for leak-proof systems
High quality brass, stronger compression performance
Large radian bend design, large flow
U-profile fitting ensure a circulation across the entire house, fewer virus and healthy water supply
PP-R Fitting
Product Series
End cap
Female elbow
Female straight coupling
Male elbow
Male straight coupling
Male tee

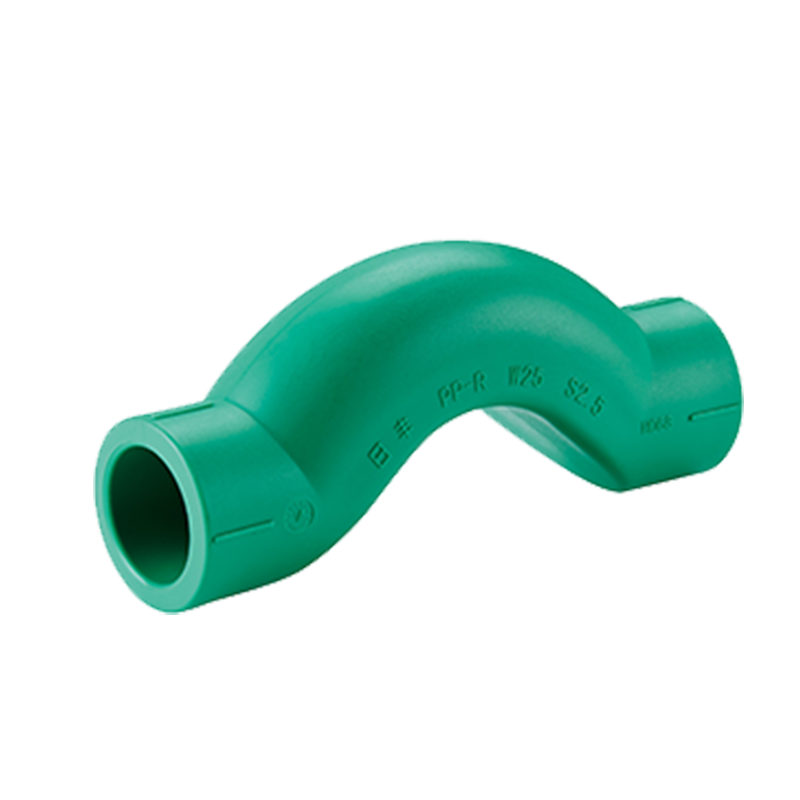

Pipe bridge
PPR System-Assembly double U-elbow
U-female elbow
Wall-plated female elbow
Installation
01
Cut the pipe vertically.
02
Remove the burr, clean the rough selvedge. Use a pencil and RIIFO marker to mark the according melting depth on the surface of pipe ends.
03
Push and insert the pipe and fitting simultaneously into the melding heads on the device. Push the fitting as far as possible; Push the pipe to the marked position. *If pushing over the marked position or heating over specified time, the pipe may be constricted or clogged. Specified time in right table.
04
When the heating time is passed, pull out the pipe and fitting from the adaptors quickly, then link the pipe and fitting together coaxially.
05
Then hold the pipe and fitting following the connecting time until the welding is completed.
