PEX-a Pipe

Plumbing - PEX Plumbing System

RIIFO offers a comprehensive range of PEX-a products, highly regarded by installers for their chlorine resistance, freeze resistance, flexibility, and ease of installation.

Certified to NSF 14 and 61 and achieve the highest level of chlorine-resistance

Flexible with fewer fittings, reducing installation time and risk of leaks

Full-flow design to minimize pressure loss

F1960 connection method, simple, quick and reliable

PPI-listed raw materials support a 50-year service life

PEX-a Pipe

Product Series

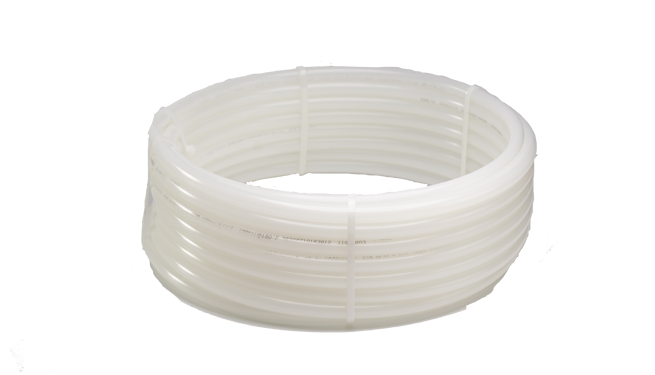

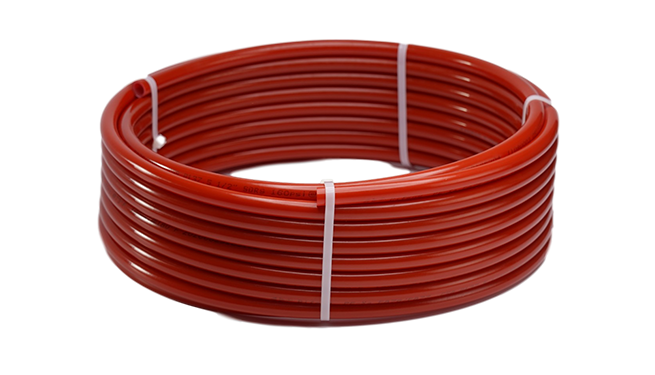

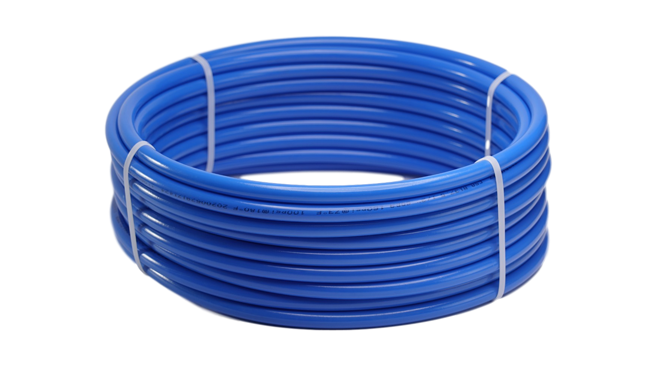

PEX-a (American Standard)

Installation

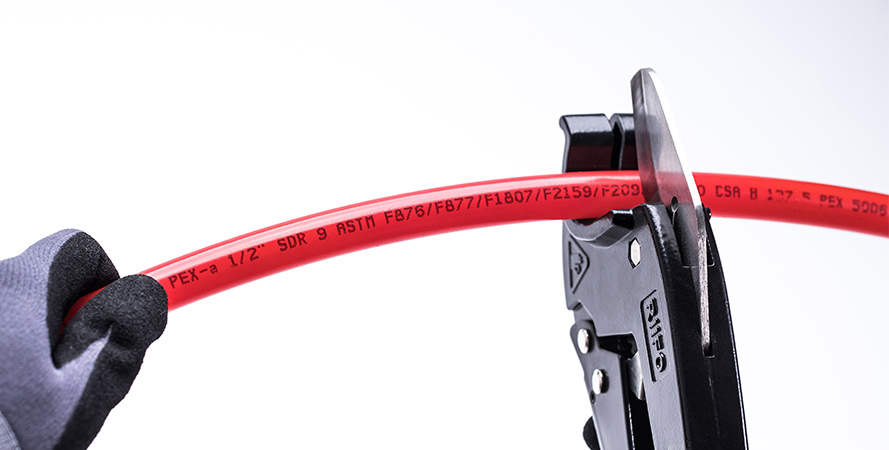

Cut

Cut the tubing vertically and precisely with a tubing cutter.

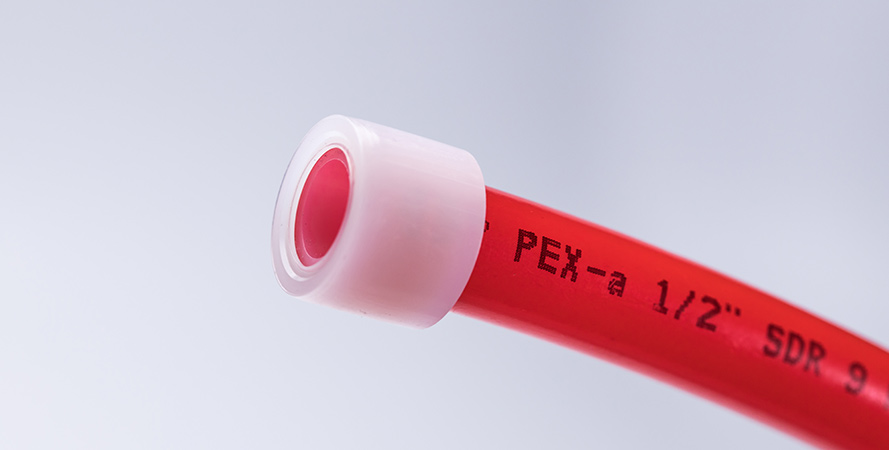

Place expansion ring

Choose the appropriate size expansion ring and place it onto the end of the tubing.

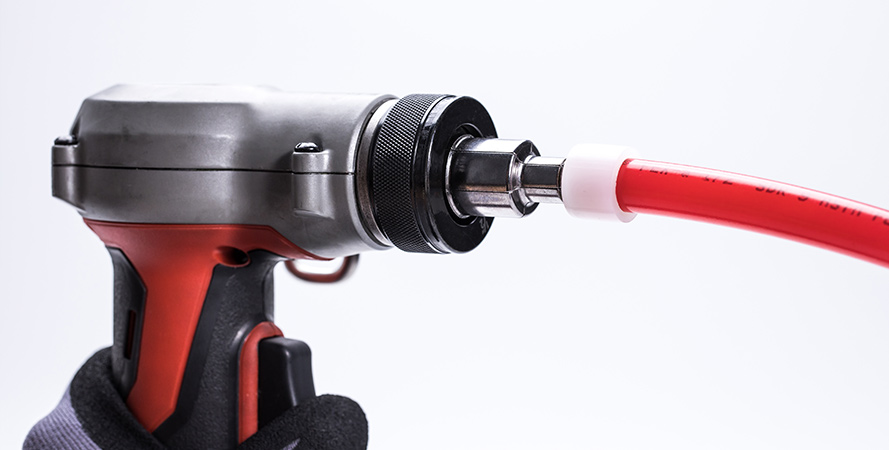

Expand

Using an approved manual or cordless expansion tool, slide the tubing onto the tool head until it stops. Expand until the tubing/sleeve are snug with the expander tool.

Note: Ensure to stop and rotate tubing 1/8 turn between expansions if using a manual tool or a battery tool without automatic rotation.

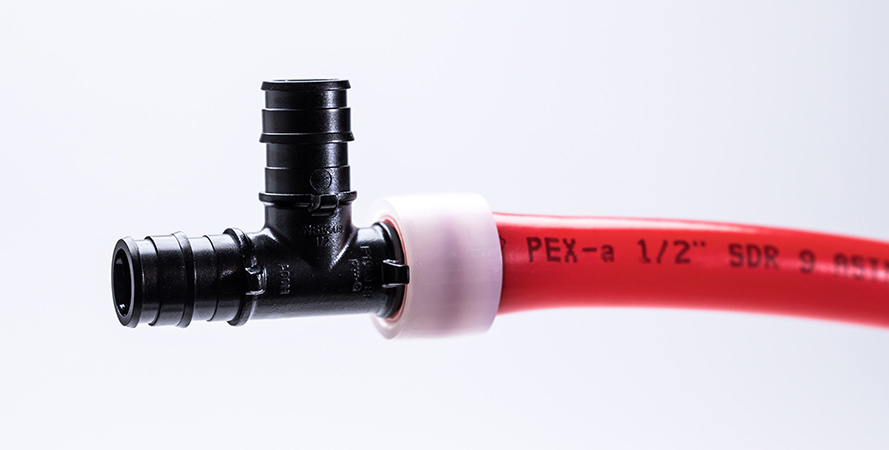

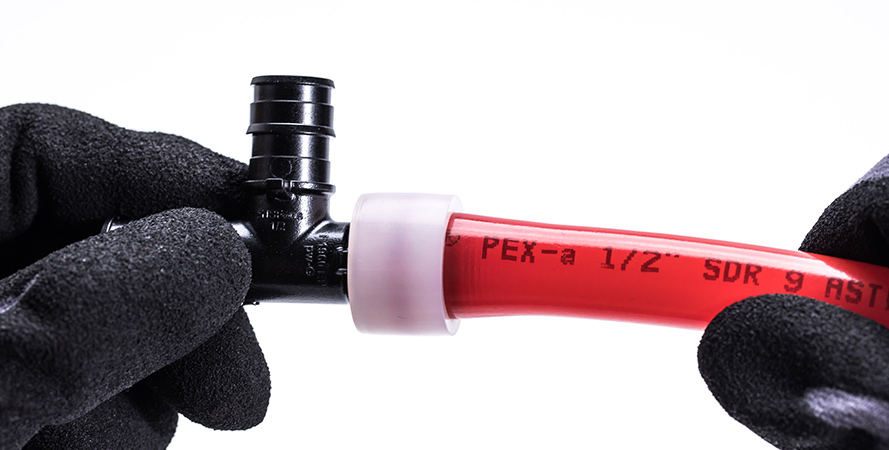

Insert the fitting

Remove the tool from the tubing and sleeve. Immediately insert the F1960 Cold Expansion Fitting into the expanded tubing until its shoulder touches the sleeve end.
