Multi-Jaw Profile

Plumbing - Multilayer Plumbing System

RIIFO Multilayer Jaw Profile Fitting Series is specially designed for multilayer piping systems. Using specialized tools, you can press the fitting onto the pipe, creating an impermeable and tightly sealed connection.

Designed for multilayer piping systems

Impermeable and tightly sealed connection

Multi-Jaw Profile

Product Series

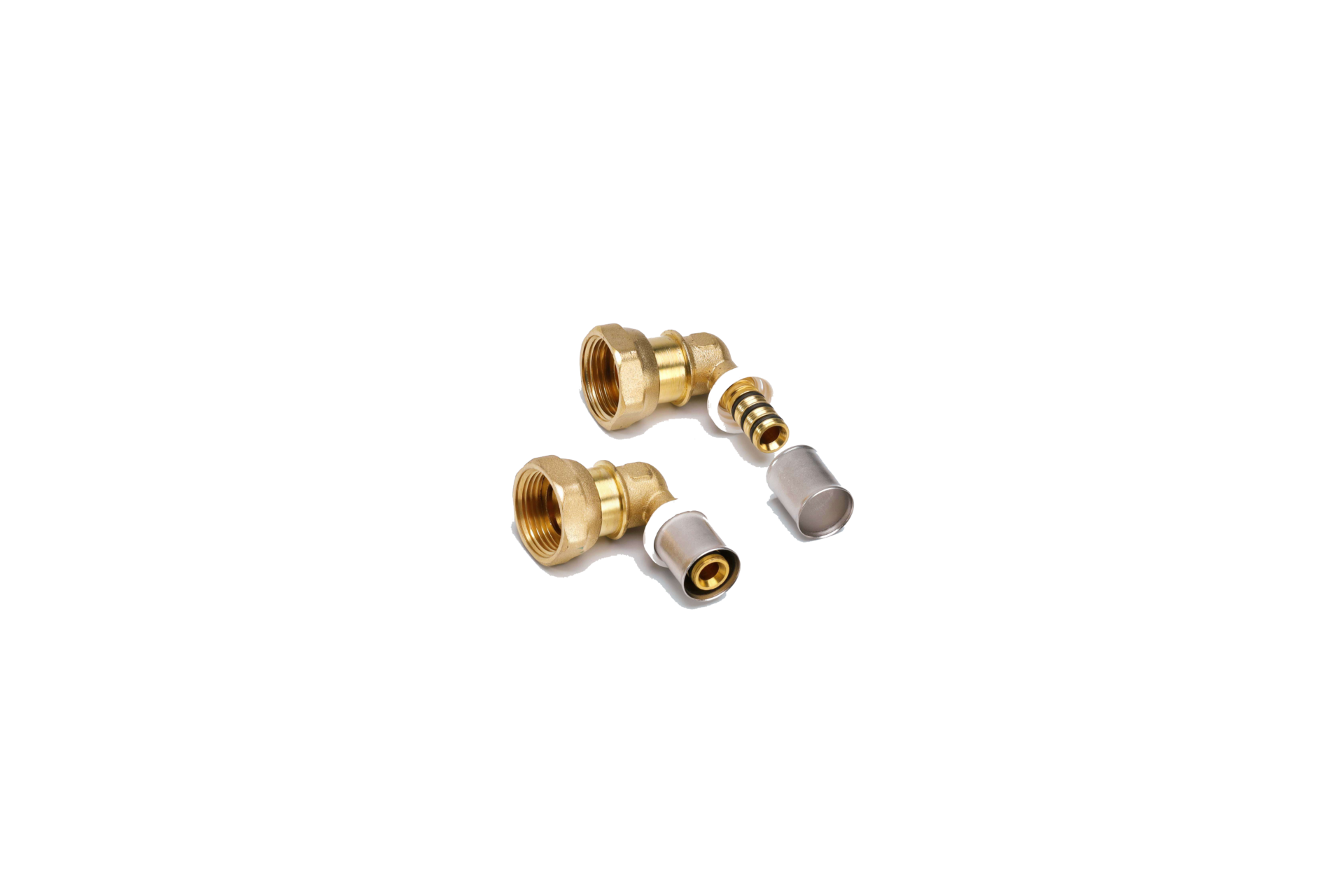

Demountable female elbow

Demountable female straight coupling

Elbow

Female elbow

Female straight coupling

Straight coupling

Female tee

Male straight coupling

Male tee

Reducing coupling

Reducing tee

Wall plated female elbow

Wall-plated female elbow, double

End cap

Tee

F5 Installation

Pipe cutting

Cut the pipe vertically and precisely with RIIFO pipe cutter.

Pipe beveling and calibration

Use RIIFO reamer to bevel and calibrate the pipe. Insert the reamer completely inside the pipe. Rotate the reamer in one direction for several times to form around pipe end.

Pipe inserting into fitting

Insert the pipe into the sleeve, until it reaches the plastic gasket. Check it through the inspection holes on the sleeve. It is important to ensure the pipe is completely inserted into the fitting.

Pressing

Put the fitting under the right position of the jaw. Press the fitting until the jaw is fully closed. The press jaw must be placed close to the plastic gasket.
