Butt-fusion Welding Fitting

Infrastructure- HDPE Infrastructure System

Butt-fusion
Welding Fitting

The connection of the pipe and fittings can be installed with butt welding, hot-melt socket and electro fusion. The entire piping system that has been widely used in municipal projects is safe, reliable and low-cost.

Service life：50 years

Non-toxic hygiene: no heavy metals, materials can be recycled

350% pipe elongation resist uneven settlement of foundation

Connecting is convenient and reliable with various construction methods

Aging resistance, black pipe can reduce the ultraviolet light on the pipe.

Excellent low temperature impact resistance performance

Butt-fusion Welding Fitting

Product Series

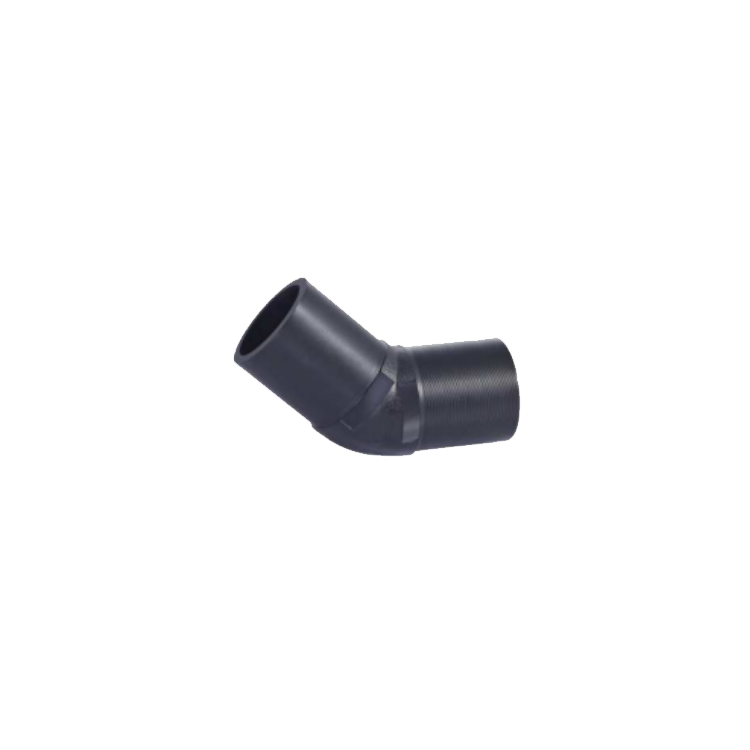

Elbow(135°)

End cap

Flange ring

Elbow(90°)

Reducing tee

Flange case

Tee

HDPE Butt-fusion
Welding

Setup Machine

Setup the butt fusion machine on flat,switchon the power, heat up the iron

Tube Alignment

Fix the pipes on clamps and leaving enough room for facer. Bring the pipe ends togetherto check the alignment, adjust if needed. Then open for next step.

Set the miler

Set the miler between the pipes. Bring the pipe ends together to shave. Proper shaving wil produce continuous and even strips.Then open the pipes, take off the miller.

Connect the pipe

When the head is built to required height, take off the heating iron. And bring the pipe ends together to complete the fusion according to required time.
