Plumbing - Multilayer Plumbing System
Multi-Jaw Profile
RIIFO Multilayer Jaw Profile Fitting Series is specially designed for multilayer piping systems. Using specialized tools, you can press the fitting onto the pipe, creating an impermeable and tightly sealed connection.
Designed for multilayer piping systems
Impermeable and tightly sealed connection
Multi-Jaw Profile
Product Series

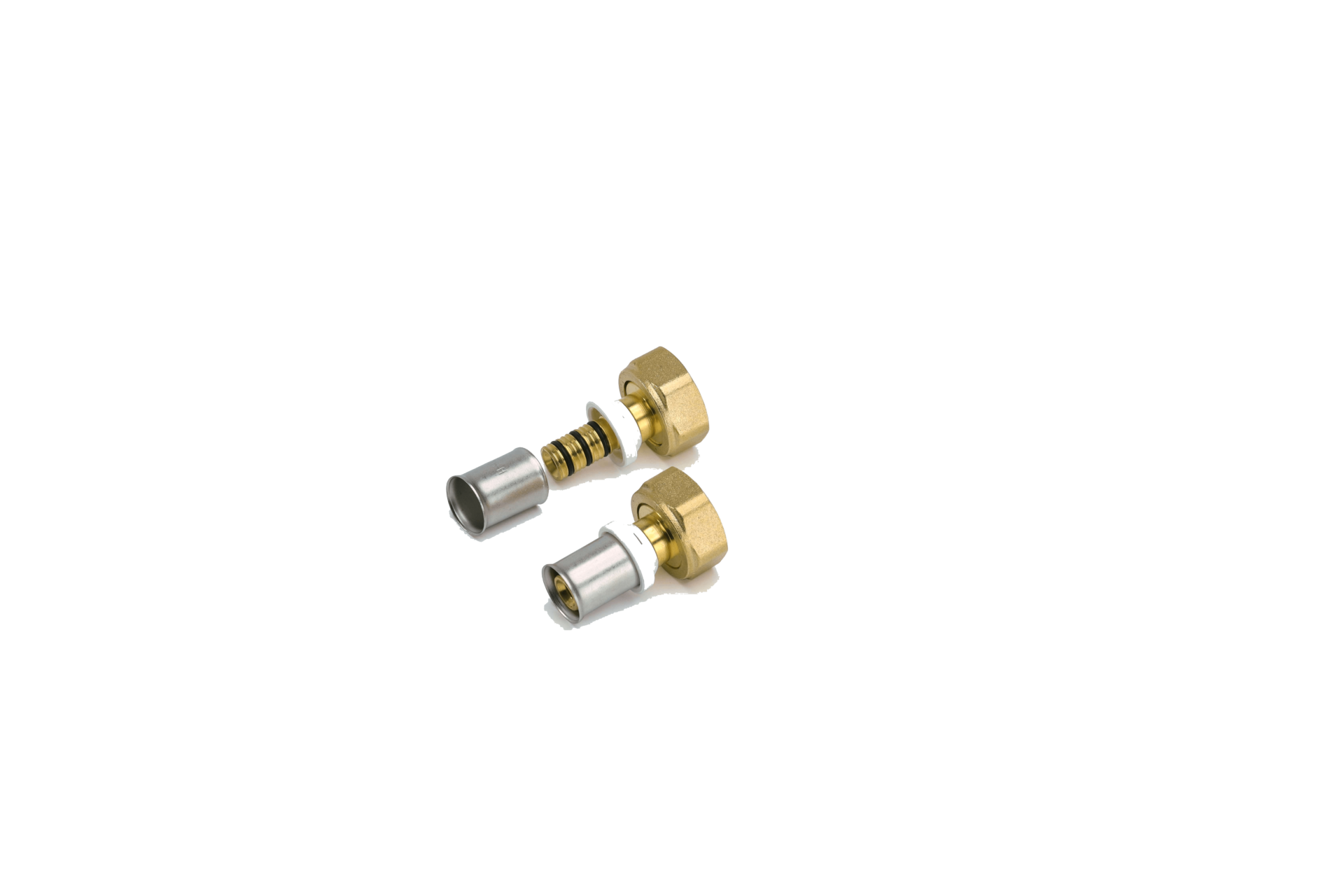

Demountable female straight coupling

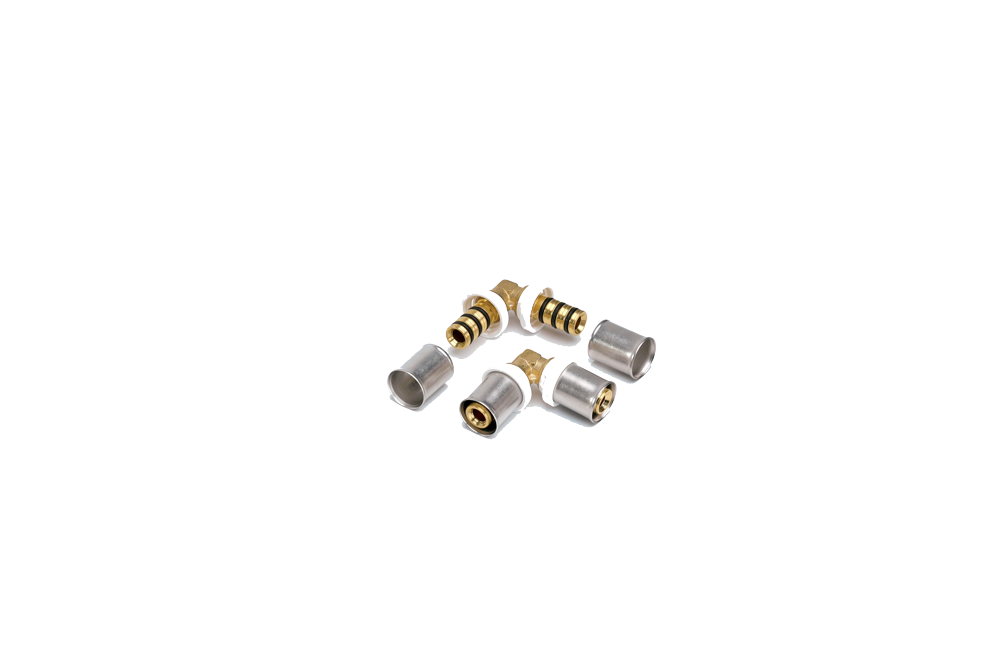

Elbow

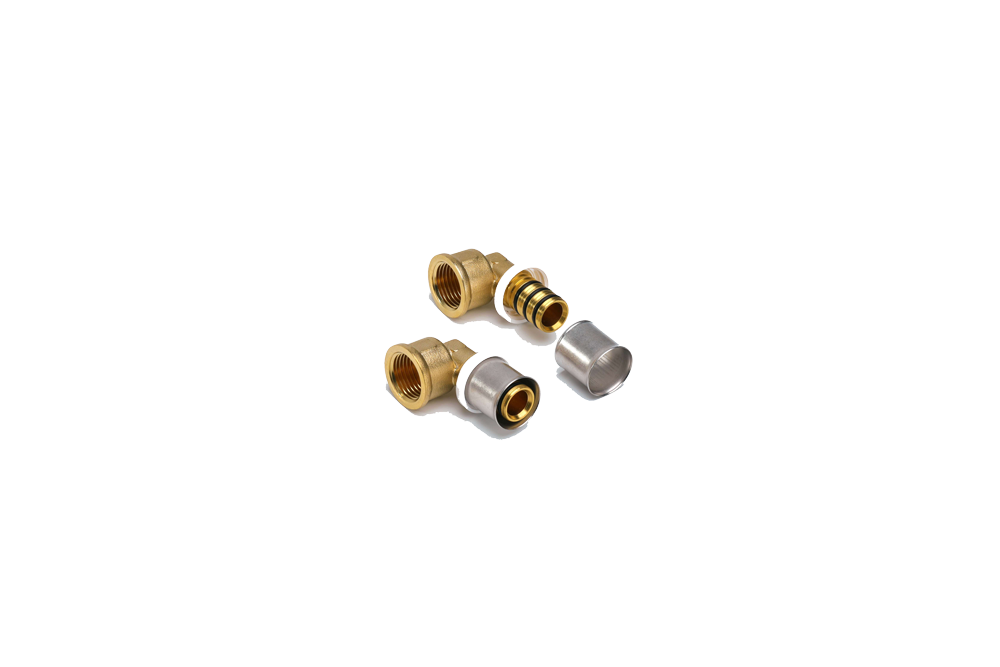

Female elbow

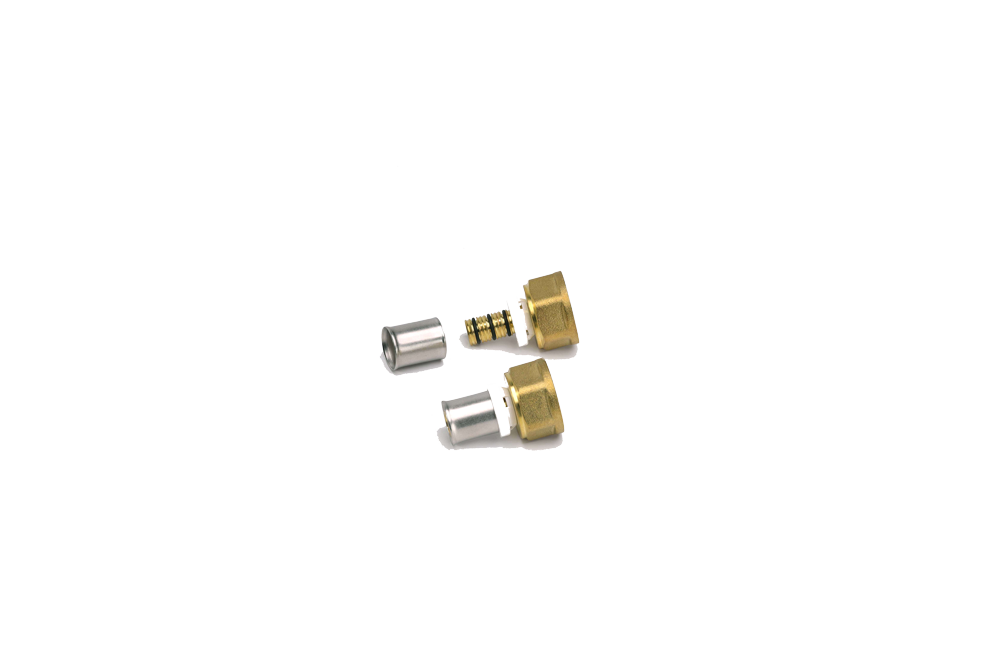

Female straight coupling

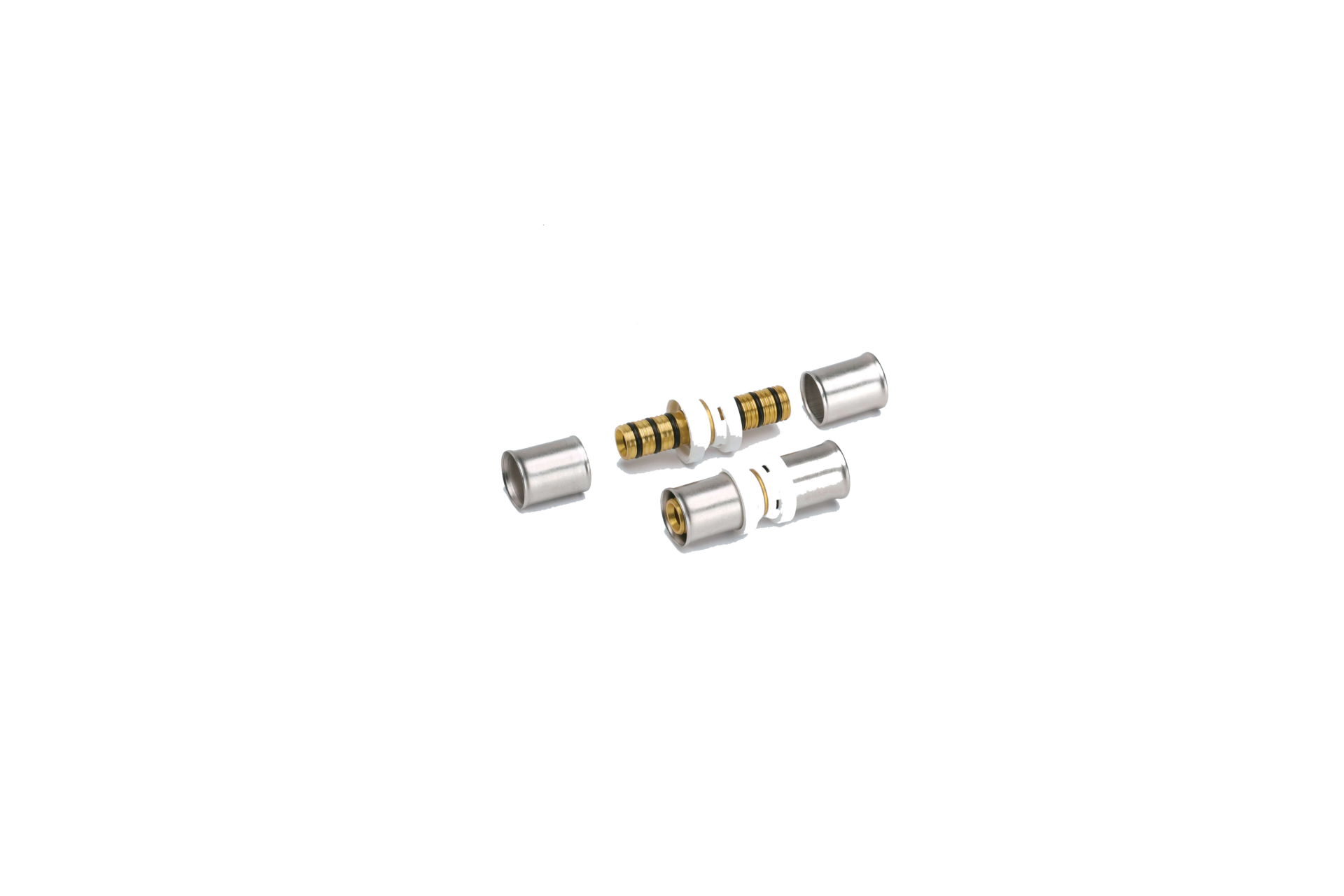

Straight coupling

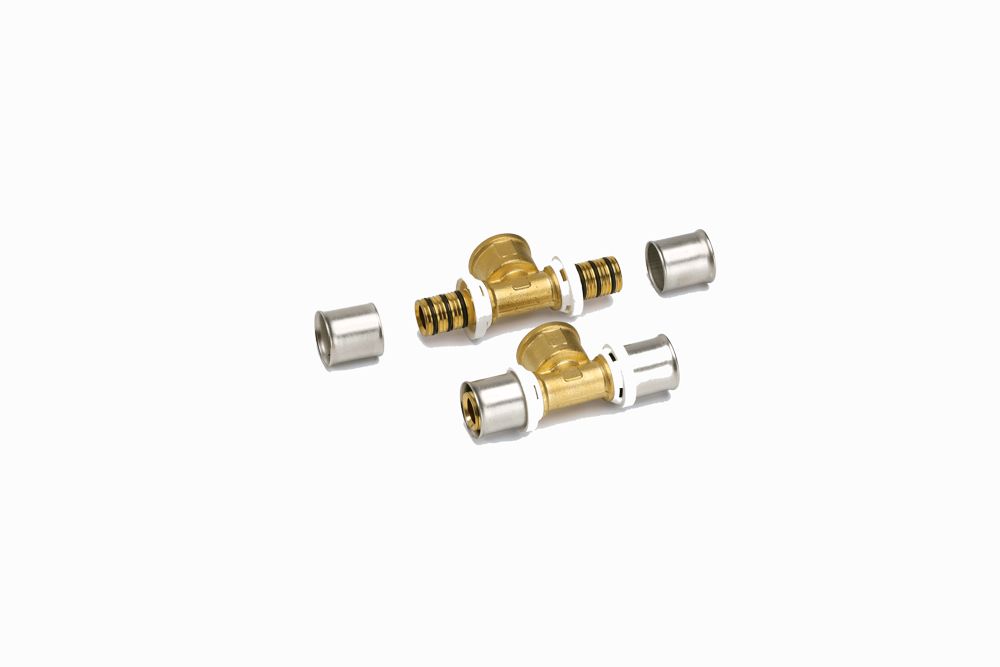

Female tee

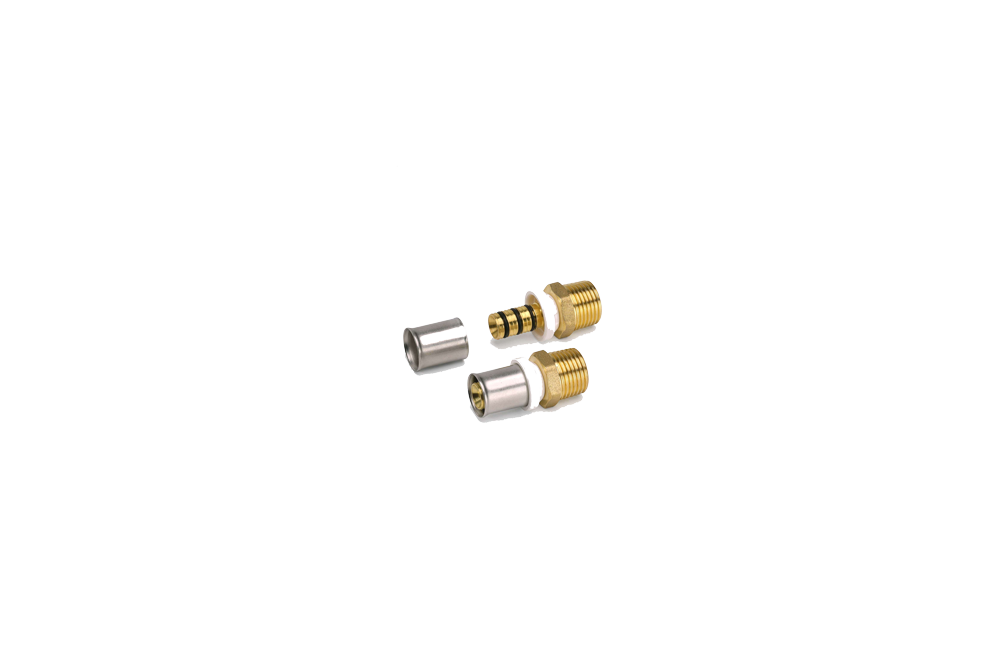

Male straight coupling

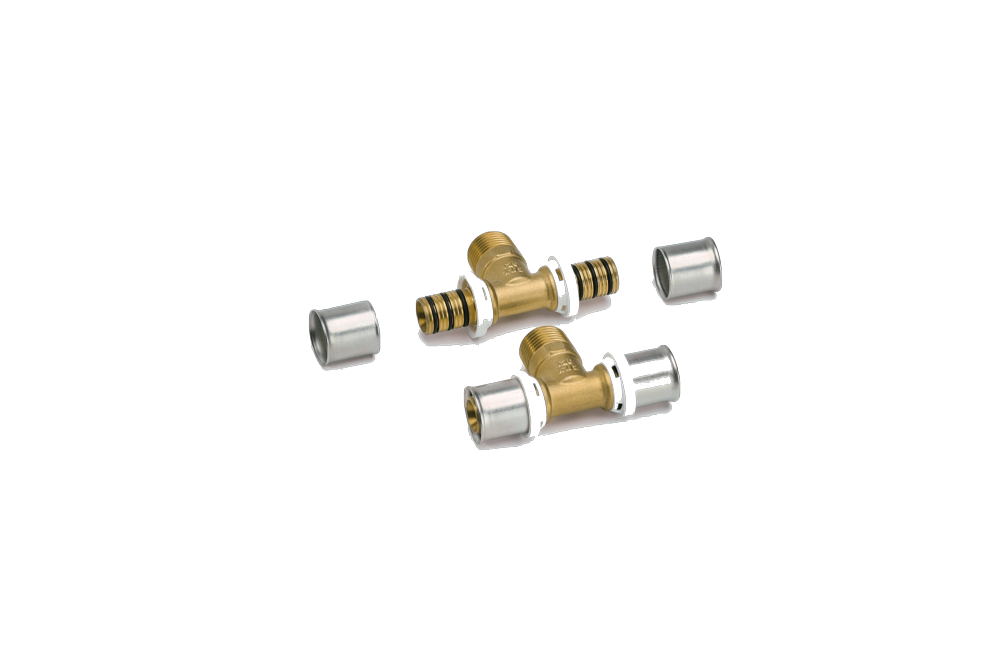

Male tee

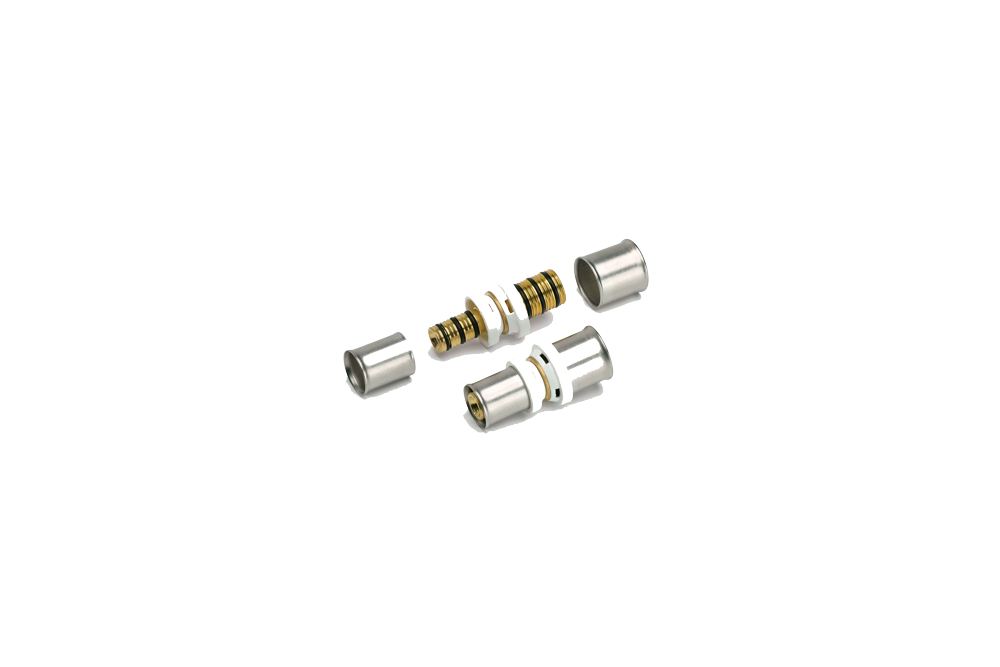

Reducing coupling
Reducing tee

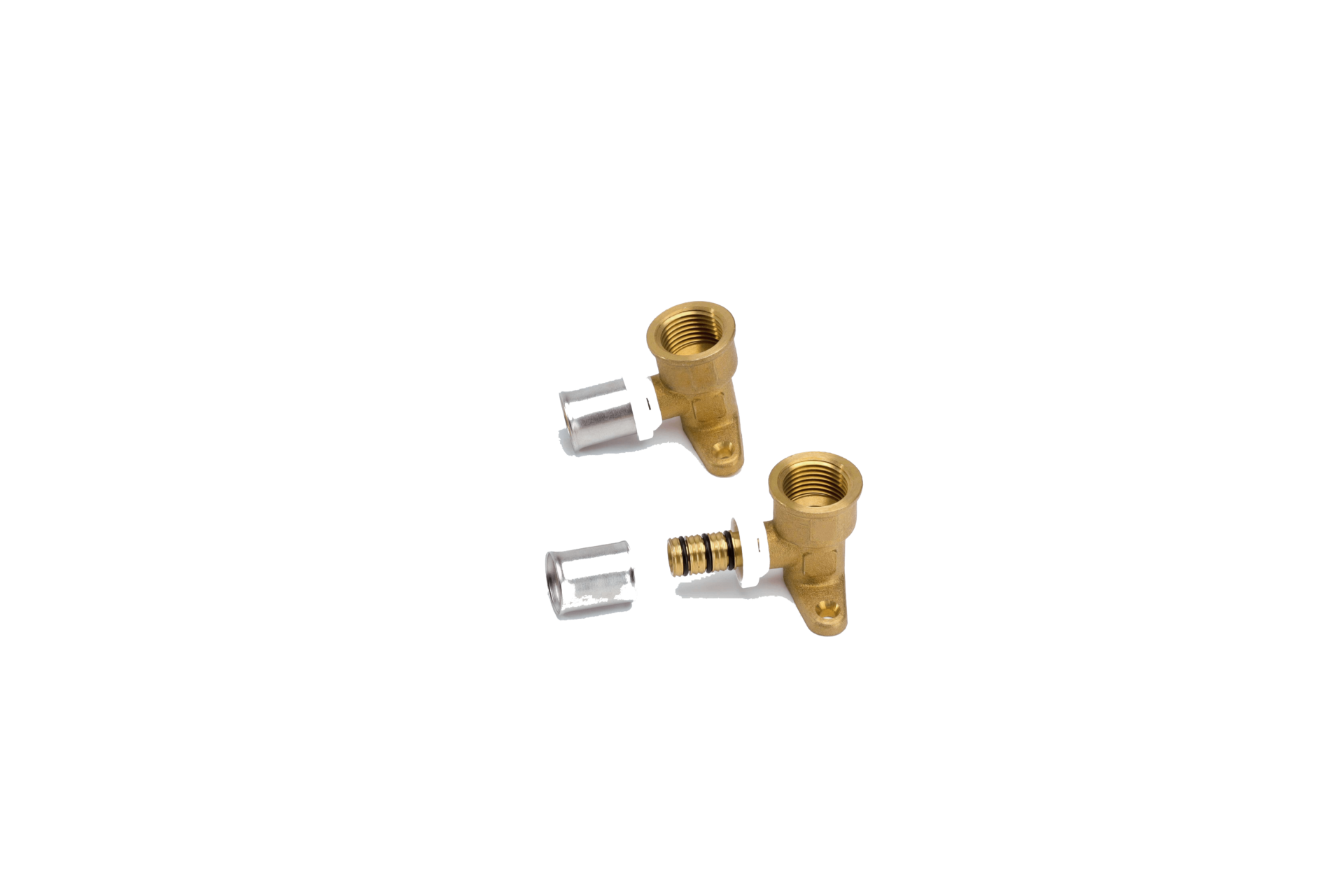

Wall plated female elbow

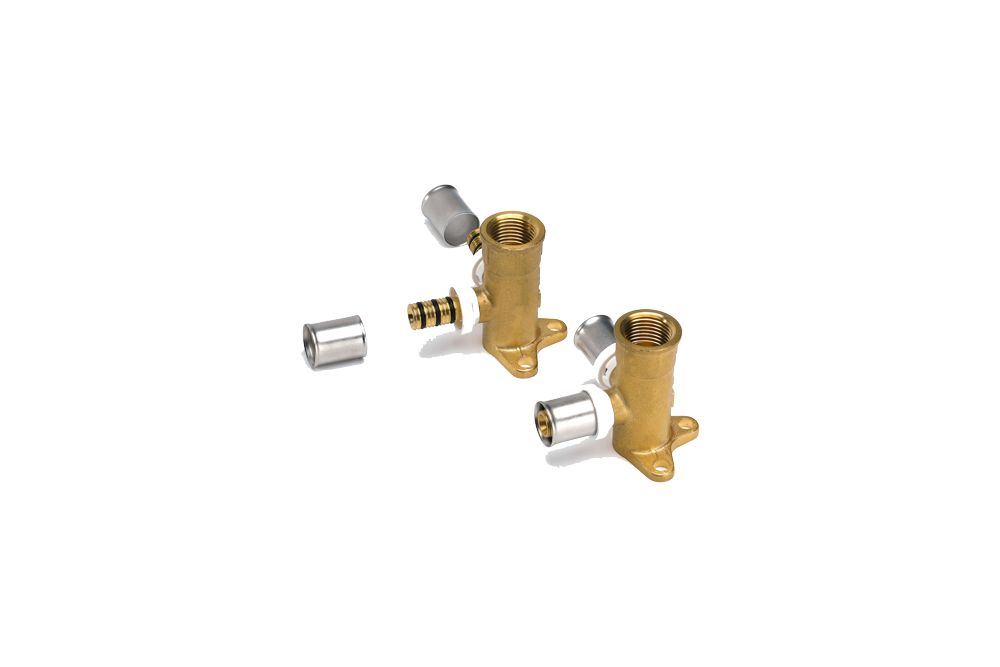

Wall-plated female elbow, double

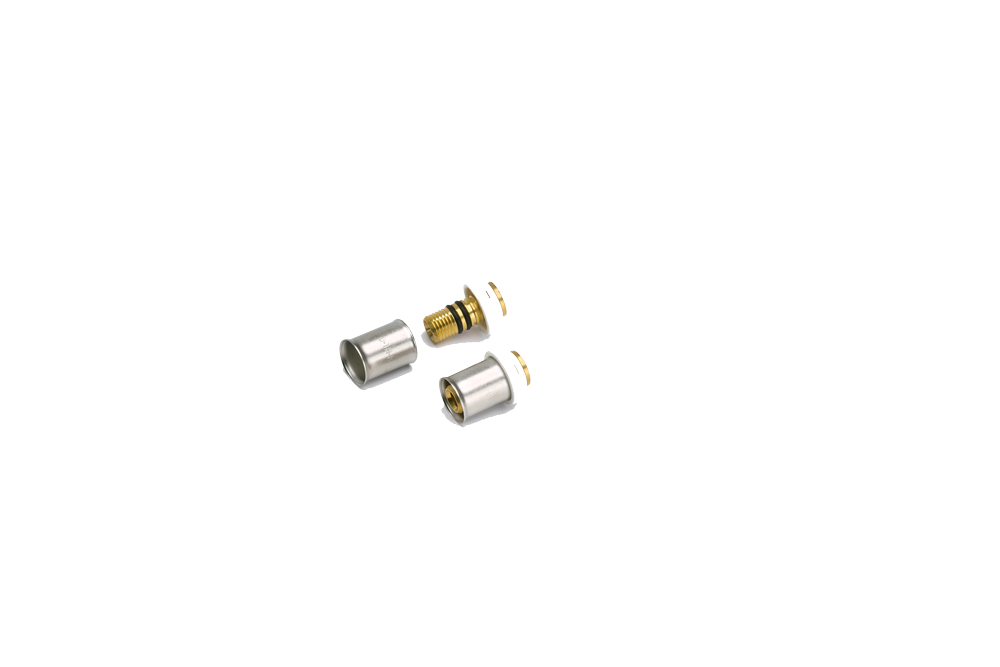

End cap

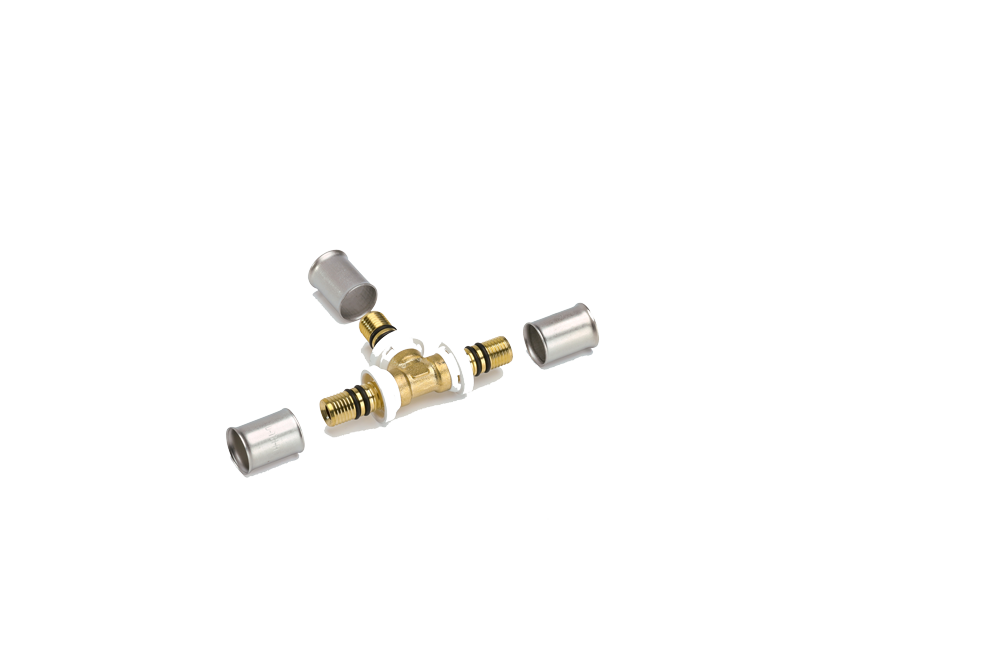

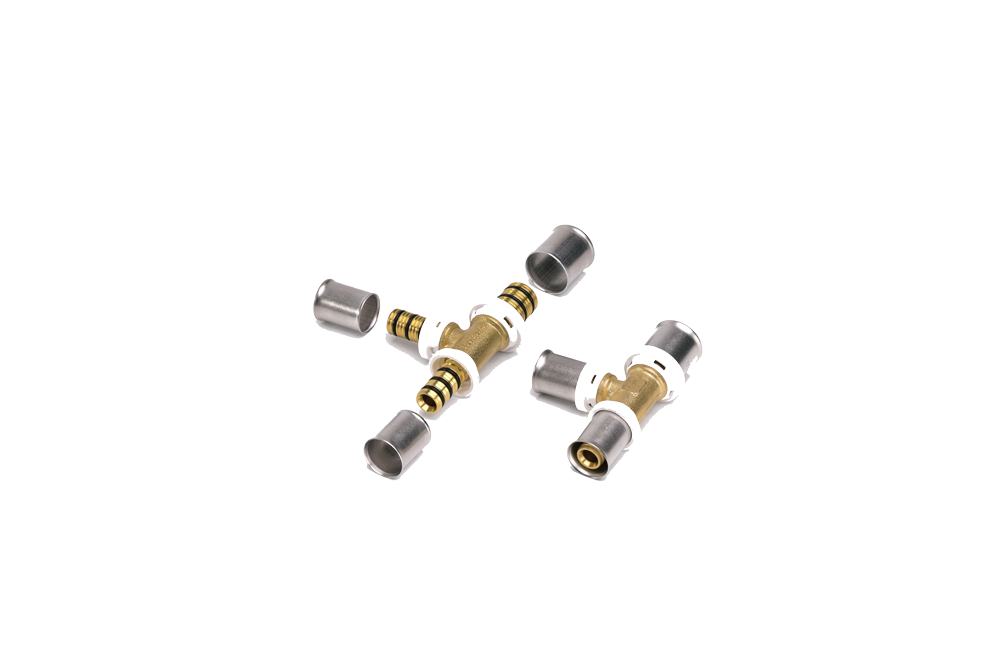

Tee
F5 Installation
01
Pipe cutting
Cut the pipe vertically and precisely with RIIFO pipe cutter.
02
Pipe beveling and calibration
Use RIIFO reamer to bevel and calibrate the pipe. Insert the reamer completely inside the pipe. Rotate the reamer in one direction for several times to form around pipe end.
03
Pipe inserting into fitting
Insert the pipe into the sleeve, until it reaches the plastic gasket. Check it through the inspection holes on the sleeve. It is important to ensure the pipe is completely inserted into the fitting.
04
Pressing
Put the fitting under the right position of the jaw. Press the fitting until the jaw is fully closed. The press jaw must be placed close to the plastic gasket.
05
Checking
Checking the jaw when the pressing procedure is done.
