Heating & Cooling - Air Conditioning Piping System
Compression Fitting
RIIFO Air Conditioning compression fitting is designed for use in air conditioning piping systems to connect RIIFO multilayer pipes.
Easy installation, no need for welding
Corrosion resistant
Removable and reusable
Safe and reliable
Long service life
AC Compression Fitting
Product Series

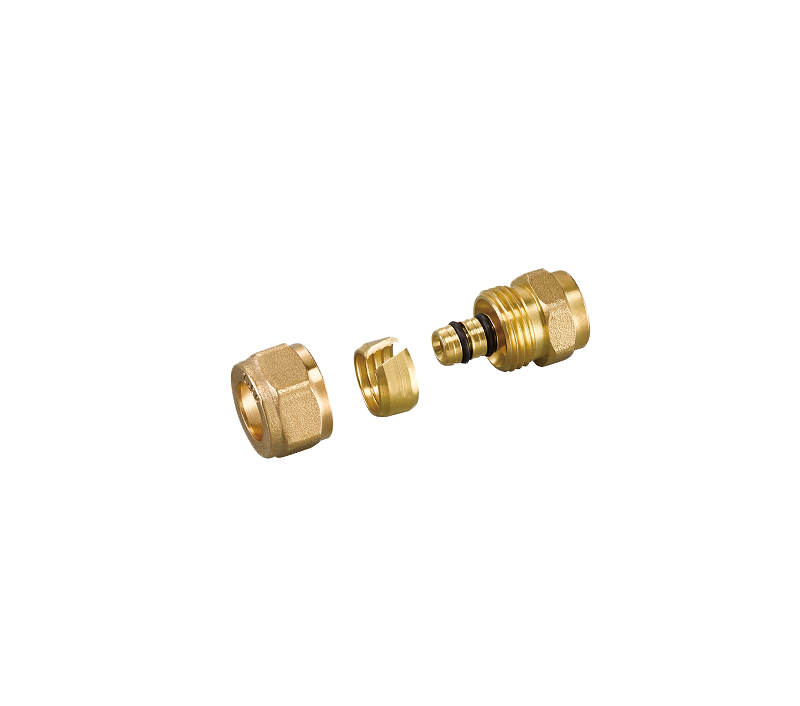

Straight Coupling
Installation
01

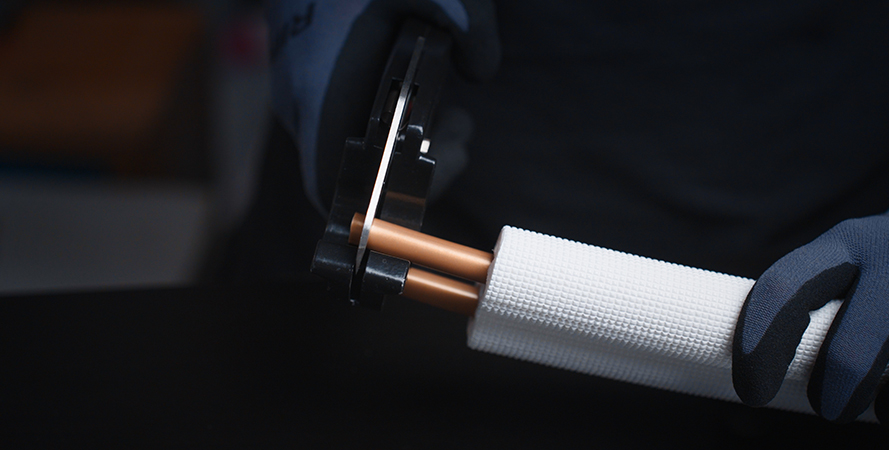

Pipe cutting
Cut the pipe vertically and precisely to the required length with a pipe cutter.
02

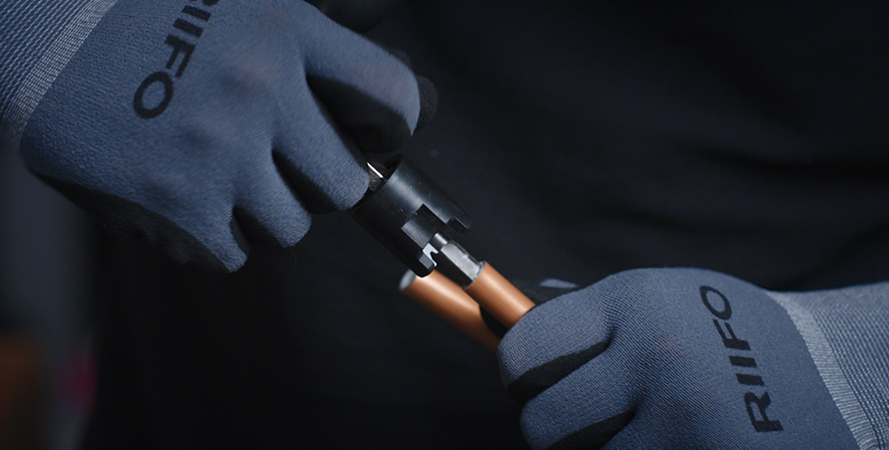

Beveling
Bevel the pipe with a special reamer for a pipe size of 7mm internal and 12mm external (0712). Then, bevel the pipe with 9mm internal and 12mm external diameter (0912) with a regular reamer.
03

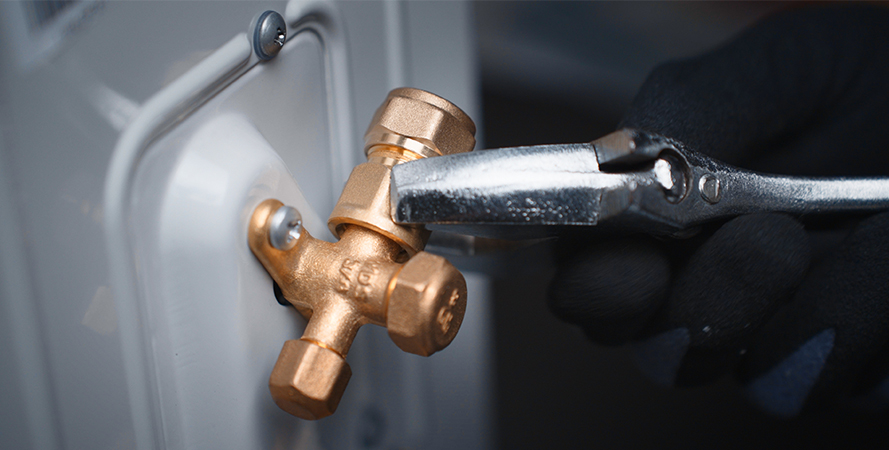

Installing the fitting
Install the fitting onto the value before connecting the pipe, and tighten it with a wrench.
04

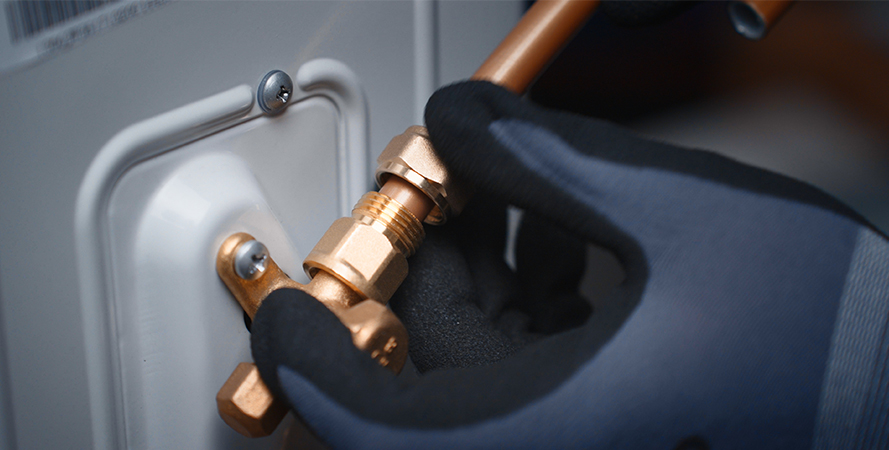

Inserting the pipe
Insert the pipe into the fitting and tighten the nut slightly by hand. Finally tighten the nut with a wrench to the required torque.
05

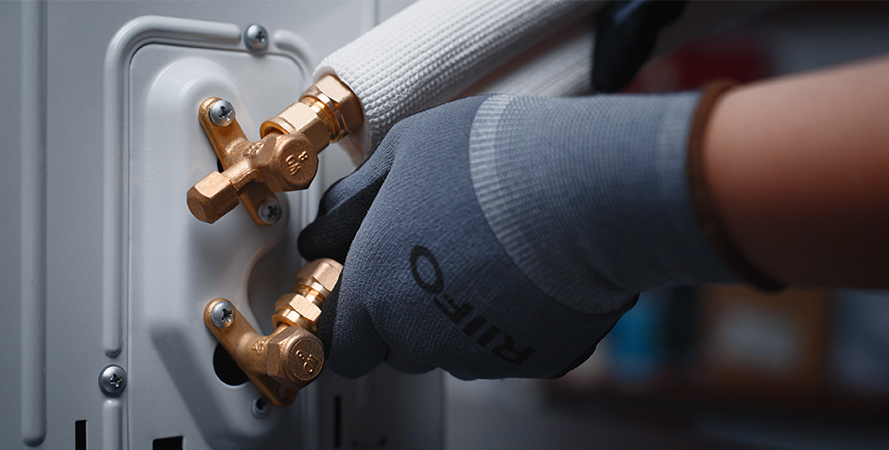

Covering
Cover the pipe with the insulation.
What We Promise
01
25 Years Guarantee
Our products are covered by a 25-year product warranty. We guarantee high quality and support you with a long-term warranty.
02
Product Liability Insurance
We protect the legal rights and interests of our customers. Therefore, we have taken out a product liability insurance policy with Allianz, one of the world’s leading insurers, with a coverage amount of 10 million USD.
