Heating & Cooling - Underfloor Heating System
Multilayer Pipe
RIIFO PE-X/AL/PE-X multilayer pipes are perfectly suitable for underfloor heating applications. The aluminum layer acts as a barrier for oxygen and provides excellent mechanical resistance, flexibility, and stability during installation. It also features high pressure and temperature resistance.
Energy efficient and cost effective
Space-saving
Uniform heat emission
Temperature regulation per zone vla manlfolds
Complementary with dlifferent energy sources
Hygienic

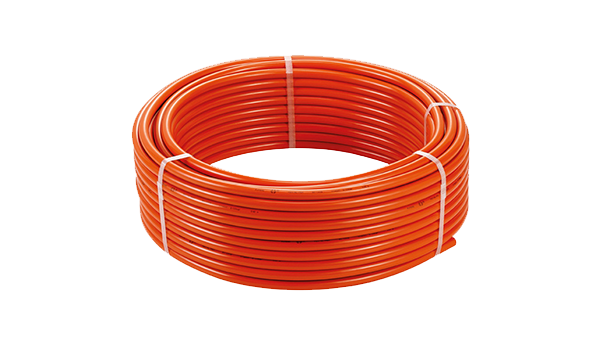

UFH Multilayer Pipe
Product Series
PEX-AL-PEX-(B1 Series) (EUR)
01
Pipe cutting
Cut the pipe vertically and precisely with RIIFO pipe cutter.
02
Pipe beveling and calibration
Use RIIFO reamer to bevel and calibrate the pipe. Insert the reamer completely inside the pipe. Rotate the reamer in one direction for several times to form around pipe end.
03
Pipe inserting into fitting
Insert the pipe into the sleeve, until it reaches the plastic gasket. Check it through the inspection holes on the sleeve. It is important to ensure the pipe is completely inserted into the fitting.
04
Pressing
Put the fitting under the right position of the jaw. Press the fitting until the jaw is fully closed. The press jaw must be placed close to the plastic gasket.
05
Checking
Checking the jaw when the pressing procedure is done.
