Heating & Cooling - Air Conditioning Piping System

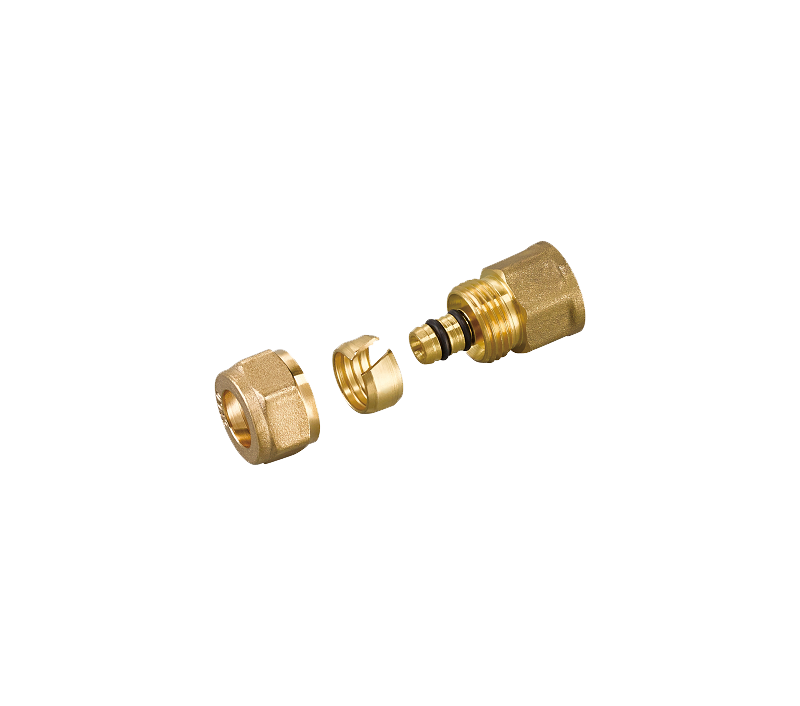

Compression Fitting
RIIFO Air Conditioning compression fitting is designed for use in air conditioning piping systems to connect RIIFO multilayer pipes.
Easy installation, no need for welding
Corrosion resistant
Removable and reusable
Safe and reliable
Long service life
AC Compression Fitting
Product Series
Straight Coupling
Installation
01
Pipe cutting
Cut the pipe vertically and precisely to the required length with a pipe cutter.
02
Beveling
Bevel the pipe with a special reamer for a pipe size of 7mm internal and 12mm external (0712). Then, bevel the pipe with 9mm internal and 12mm external diameter (0912) with a regular reamer.
03
Installing the fitting
Install the fitting onto the value before connecting the pipe, and tighten it with a wrench.
04
Inserting the pipe
Insert the pipe into the fitting and tighten the nut slightly by hand. Finally tighten the nut with a wrench to the required torque.
05
Covering
Cover the pipe with the insulation.
